The 9530 Pulse Generator provides precision timing and synchronization to effectively trigger any series of events or necessary equipment with four or eight independent outputs, dual inputs with gate/trigger or optional dual trigger, and external clock reference input.The 9530 can accept a low amplitude clock frequency down to 20 mV, up to 100 MHz. This offers the ability to phase-lock directly to a laser photodiode signal, providing system timing synchronicity with the laser with very low jitter (< 50 ps). Complimentary Labview Drivers (NI certified) available.
Specifications
- Channels: 4 or 8 Independent Channel Outputs
- Resolution: 250ps
- Accuracy: 1 ns + .0001 x setpoint
- Jitter: < 50 ps
- Memory: 24 Storage Slots
- Comm Ports: USB, Ethernet, RS232

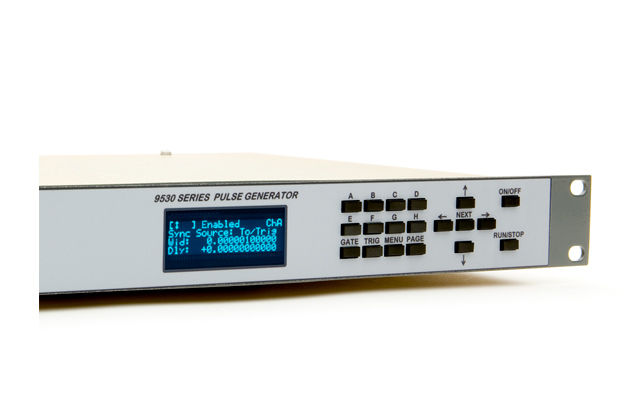

9530 Series Delay Pulse Generator
$4,660.00Price
9530 Digital Delay Pulse Generators are commercially available with a standard lead time of 7 business days. Email us for special models, OEM, or custom instruments.
