LASER SYSTEMS
LASER MICROMACHINING HEADS
Quantum Composers offers compact, all-in-one laser systems for semiconductor applications. The LS-635B and the MiniJewel laser system feature an integrated pulsed Nd:YAG laser for optimal performance. Both models offer flexibility in wavelength and configuration while delivering excellent beam quality, long lifetime, and ease of use.
Use Quantum Composers' integrated laser systems for design validation, precision manufacturing, and repair applications such as:
​
-
Laser ablation
-
Semiconductor failure analysis
-
TFT/LCD repair
-
CF and cell laser capture microdissection, LMD
-
OLED repair
System Features: Multi-wavelength systems, wavelength attenuation, fixed or adjustable polarization, beam blending (MiniJewel System only), and camera port (optional).
MiniJewel System
resting on a microscope
using our Smart Controller.
LS-635B LASER SYSTEM
The LS-635B offers ultimate in beam uniformity, reliability, and configuration flexibility. Fitted with our compact Nd:YAG DPSS laser, the LS-635B's high beam quality and enhanced pulse-to-pulse stability translate to high cutting productivity.
​
​
Key Features:
-
1064 / 532 / 355 / 266nm wavelengths
-
Energy up to 1.2mJ
-
Passive conductivity cooled
-
Low power consumption <100W
-
500,000,000+ pulse lifetime
-
Rotating XY aperture 2.5mm standard (4mm option)
-
Integrated camera port
MiniJewel LASER SYSTEM
The MiniJewel System is a compact, multi-wavelength imaging system, powered by our MiniJewel laser, with a choice of wavelengths and modules for complete beam control.
MiniJewel systems are perfect for setting on top of microscopes! Build a configuration that suits your needs, using the many modules and options available.
Applications include microablation, machining, marking, and more.
​
​
Key Features:
-
Dual wavelengths, 1064/532, 532/355 or 532/266
-
4mJ at 1064nm only, 1.25mJ dual wavelength
-
Energy control, beam sizing & shaping
-
Fast throughput with range of rep rates
-
Remote interlock
-
Payload: 140mm x 87mm x 233mm

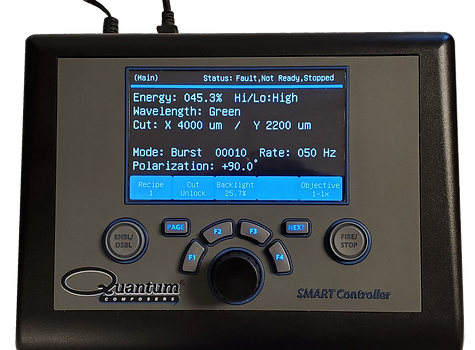

SMART CONTROLLER
The Smart Controller is an easy-to-use extension for manual
repair systems that may include a microscope setup. The controller comes with the functionality to control the system's energy, firing mode, rate, and slit size and shape. Sleek, compact, and portable, this device eliminates the need for a desktop computer to operate laser systems, freeing up valuable lab space.
​​
An optional video module is also offered that overlays the outline of the slit shape onto standard composite or S-video signals from the system camera.
​
​
Key Features:
​
-
Large format color LCD screen
-
Touchscreen programming
-
Automatically configures based on the type of system
-
Can be used with LS-635B, MiniJewel Systems, or our Jewel Lasers​
-
-
Easy integration
TYPICAL APPLICATIONS
Remove EPOXY
on surface by
266nm
Remove RGB color filter and keep metal
line by 266nm
Laser marking for NGD
(likes INK function)
by 532nm
Remove polyimide
passivation surface
by 266nm
