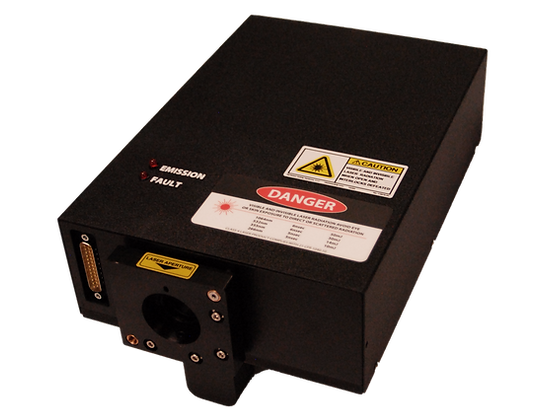

LS-635B Laser System
LS-635B is designed for reliable failure analysis and design validation applications with excellent beam uniformity.
The LS-635B offers ultimate configuration flexibility, with variable configurations based on 1064/532/355/266nm wavelengths. The laser head is just 81mm x 194mm x 298mm and comes with either a 2U rackmount or tabletop power supply.
Specifications​
High Cutting Productivity
-
Compact DPSS Laser
-
High beam quality
-
Standard high energy (up 1.2mJ)
-
Enhanced pulse-to-pulse stability
-
Saving up to 6 user-defined cutting recipes
Configuration Flexibility
-
1064/532nm; 1064/355nm; 532/266nm
-
2.5mm standard shutter
-
4mm optional
-
-
Rotating XY aperture, standard
-
Video port with c-mount adapter
High Efficiency and Reliability
-
Passive conductively cooled laser
-
Low Energy Consumption ( <100W)
-
Long lifetime > 500,000,000 pulses
-
Low maintenance (no water leaks)
Intuitive Operation
-
Smart controller (optional) with intuitive,
touch-screen software. -
Easy access to all parameter setting
-
Four function buttons for simplified operation
TYPICAL APPLICATIONS
Remove EPOXY
on surface by
266nm
Remove RGB color filter and keep metal
line by 266nm
Laser marking for NGD
(likes INK function)
by 532nm
Remove polyimide
passivation surface
by 266nm
LS-635B on a Microscope
